Sliding-500 and Sliding-800 Operators for Sliding Gates

Sliding-500 and Sliding-800 operators are designed for sliding gates weighting up to 500 and 800 kg respectively.

Application:

Sliding gates (any type)

Sliding gates with any infill options (any type)

Order with installation

Advantages

Gate stopping accuracy

New generation magnetic limit switches ensure accurate operation of limit switches in extreme positions.

Possibility of connecting photocells and signal lamp

The multifunctional control unit makes it possible to connect photocells (for opening and closing the gate), as well as a signal lamp, which ensures safe operation of the gate.

Easy to use

Ability to adjust force, auto-close and separate controls for ease of use.

Built-in receiver

The built-in receiver allows you to register up to 60 remote controls.

Gate stopping accuracy

New generation magnetic limit switches ensure accurate operation of limit switches in extreme positions.

Possibility of connecting photocells and signal lamp

The multifunctional control unit makes it possible to connect photocells (for opening and closing the gate), as well as a signal lamp, which ensures safe operation of the gate.

Easy to use

Ability to adjust force, auto-close and separate controls for ease of use.

Built-in receiver

The built-in receiver allows you to register up to 60 remote controls.

Design

OPERATOR DESIGN

Special release mechanism

Impact resistant ABS plastic

Secure fastening to mounting base

Equipment

Standard

Optional

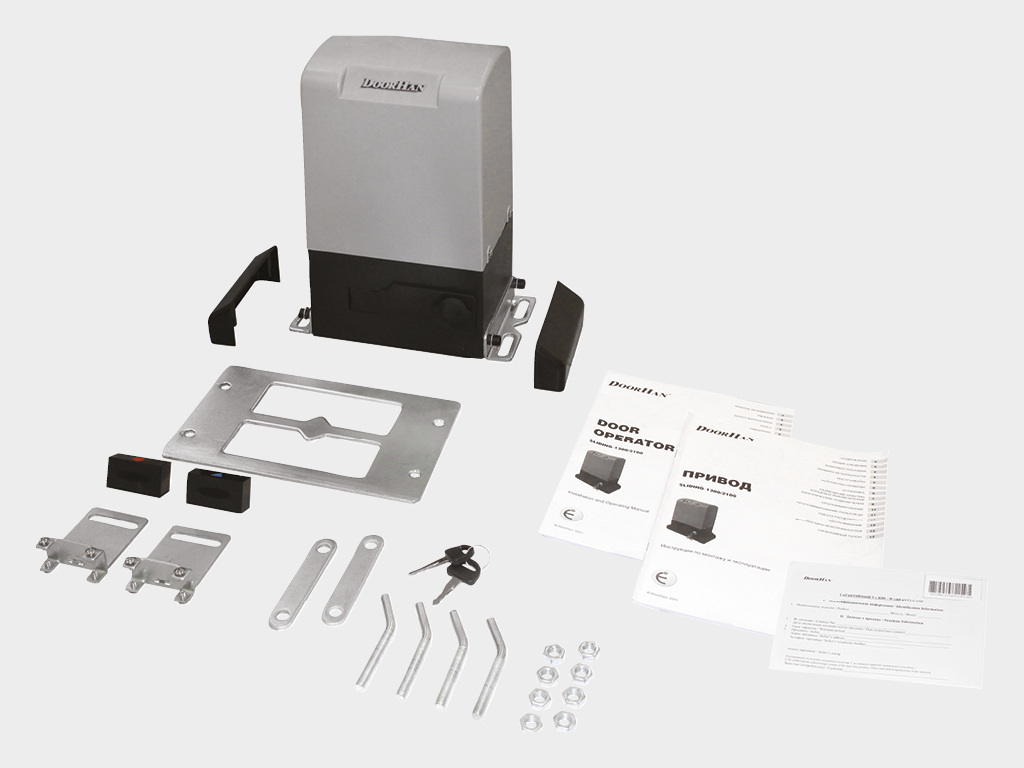

Operator, magnetic limit switches, mounting plate, hardware.

Transmitter-2PRO-Black remote control operates two devices

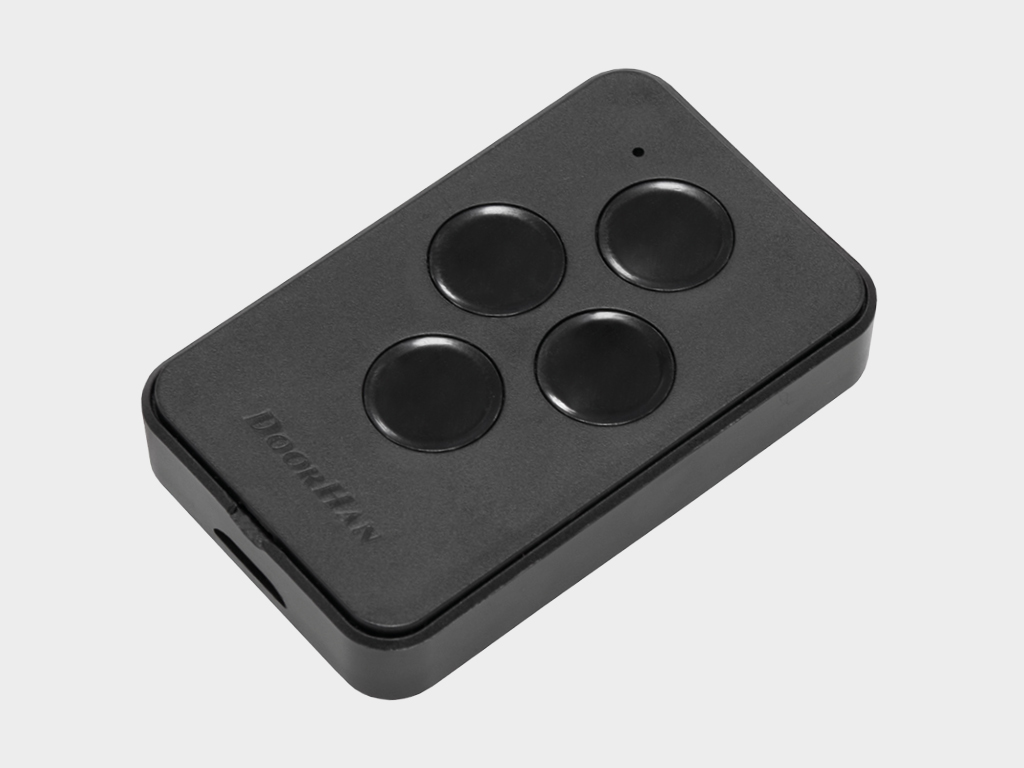

Transmitter-4PRO-Black remote control operates four devices

Transmitter-4 remote control operates four devices

Transmitter-4 (Color) remote controls of different colours operating up to four devices

Transmitter-Premium having steel housing can operate up to four devices

Car-Transmitter remote control working on cigarette lighter can operate two devices

Command-433 wireless button to control two devices

KEYPAD series code keypad controls door operator equipped with internal or external DoorHan receiver

Turning off KEYSWITCH-N transmits a controlling signal to the control block of an automatic device

Anti-vandal code keypad Ref. KEYCODE series controls automatic devices. It can be used as an outdoor keypad or a proximity-card reader

GSM-module receives a mobile phone signal and transmits a control signal to operate the operator or barrier

External DHRE-1 receiver controls other manufactures’ automatic devices with DoorHan remote control

Wi-Fi-module for wireless control of the gate operator (control signal, NO)

Lamp-PRO-series LED lamp with antenna to signal the gate movement

Photocell-N safety photocells consisting of infrared transmitter and receiver

Wireless Photocell-W safety photocells consisting of infrared transmitter and receiver

Sirena giving an audio warning about the gate movement

Heating device for gate and barrier operators working under extreme low temperature conditions

Technical description

Construction

Specifications

Operating Conditions

Operator body cover
Gear
Capacitor
Reducer housing
Operator mounting plate
Control unit
Stator
Release

Parameter	Value	Notes
Maximum gate weight, kg	500/800
Supply voltage, V	220
Maximum effective torque, N·m	16/20
Power, W	260/280
Operating temperature range, °С	-20...+55
Door opening speed, m/min	10/12
IP protection class	54
Intensity of use	50

Install the gate operator only on properly balanced and lubricated gate.

Make sure the gate operator specifications correspond to local climatic conditions.

Never install this operator in hazardous locations.

Make sure no objects will get jammed between movable and stationary parts of the operator.

Use only DoorHan accessories to prevent gate operator damage.

Never leave the gate operator disengaged.

Never use the gate operator if any repair or adjustment needs to be done.

Activate gate only when there are no obstructions to its travel.

Walk or drive through the opening only when the door is fully opened and stopped. The operator must be on stop.

Never permit children to operate or play with gate control push buttons or remote control transmitters.

Do not make any changes to automatics of the operator.

Warranty print

DoorHan warrants the gate operator to work properly for a period of 3 years from purchase date. Dealer may change the warranty period.
